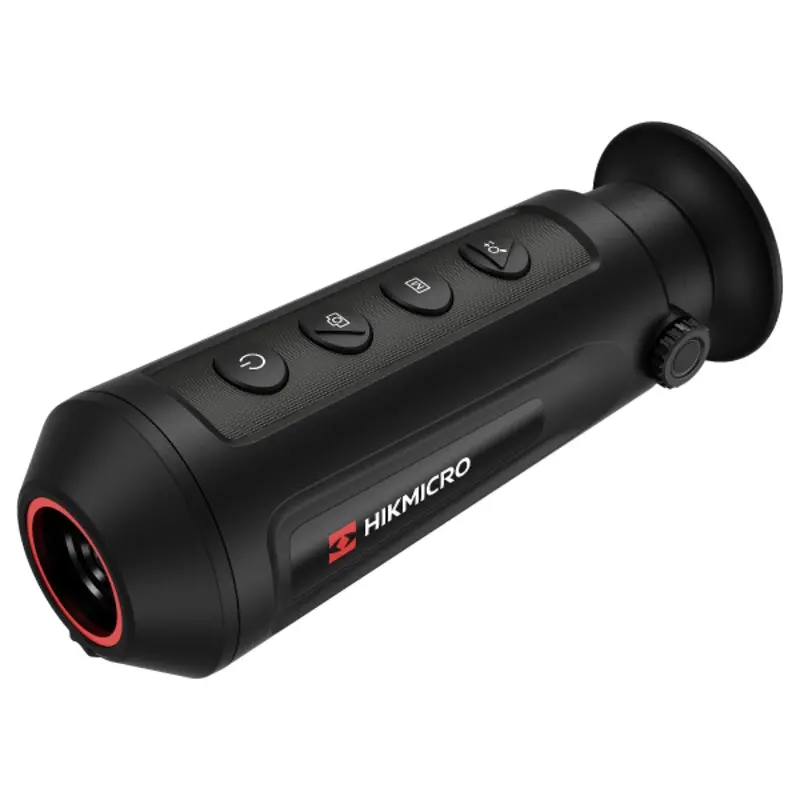

HIKMICRO Lynx LC06 6mm Smart Thermal Monocular

Description

HIKMICRO LC06 handheld thermal monocular camera is equipped with a 160 120 infrared detector and a 720 540 LCOS display. It supports functions of observation, distance measurement, Wi-Fi hot spot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, searching and rescuing, hiking, travel, and hunting, etc.

Key Features

HIK VISION THERMAL SENSOR

The HIK Micro 160x120px, 17m thermal sensor with a NETD rating of 35mK produces a high-quality thermal image.

35mK NETD Rating = One of the most sensitive sensors available on the market, detecting even the smallest temperature differences!

Combine this with the HIK software that processes the image you see on screen and you have an unbeatable package that performs well above its price point.

T-VISION APP: Connect Control Stream
Connect your smartphone and take control of all features of the Lynx 6mm.

The T-Vision app allows you to stream the output in real time allowing you to share your viewpoint with a friend.

You can also record images and video, optimise the colour profile, display settings and magnification all from the easy to use app.

HOT TRACK

Activate Hot Tracking and your Lynx 6mm will highlight the hottest spot detected in the current frame with a green crosshair. This is useful to highlight small heat sources as you scan around. This feature can also be deactivated in the menu or controlled in the App.

HIK Micro Lynx 6mm 35mK 160×120 17um Smart Thermal Monocular – Technical Information

• Sensor 160120px @ 17m
• Objective Lens 6mm
• Detection Range (Vehicle 1.4 x 4m) 559m
• Detection Range (Human 1.8 x 0.5m) 182m

SENSOR

• Type Vanadium Oxide Uncooled Focal Plane Arrays
• Resolution, pixels 160120 px
• Pixel pitch, m 17m
• Frame rate, Hz 50 Hz
• NETD Rating 35mK

OPTICS

• Objective lens F1.1
• Magnification (Optical) 0.6x
• Magnification (Digital) 1x, 2x, 4x,
• Field of view 24.7 18.7 (H V)

DISPLAY

• Type 5.08mm, LCOS
• Resolution, Pixels 720 540
• Colour Palettes Black Hot, White Hot, Red Hot, Fusion

VIDEO & SOUND

Video Recorder YES
Sound Recorder NO
Build in memory, Gb 8 Gb

ADDITIONAL FEATURES

Hot Tracking YES
WiFI hot spot YES
T-Vision App support YES

ENVIRONMENTAL

Degree of protection, IP code IP67
Dust protection Protected against dust ingress
Water protection Protected against temporary submersion in water
Operating temperature range from -20 C to 55 C

WEIGHT & SIZE

Dimensions, mm 158 mm 61 mm 57 mm
Weight, kg 0.25 kg

POWER SUPPLY

Operating time on battery
(WiFi & Hot tracking disabled) 10 hours of continuous running
Charging interface USB-C
Battery capacity after 1000 cycles 80%

• Unit Type Thermal
• Colour Palettes Yes
• Detection Range 550m
• Display Resolution 720×540
• Display Type LCOS
• FOV @ 100 yards 24
• Magnification (Digital) 4x
• Magnification (Optical) 0.6x
• NETD <35mK
• Objective Lens Diameter 6mm
• Operating Temperature -20/+40C
• Pixel Pitch 17m
• Rangefinder Stadiametric
• Refresh Rate 50HZ
• Sensor Resolution 160×120
• Video Recording Yes
• WiFi Yes

Download the HIK App here:

Apple: https://apps.apple.com/us/app/t-vision/id1478705944
Android: https://www.app-st.net/ZdMM

How thermal imaging cameras work

Thermal imaging, also known as infrared thermography or thermographic imaging, is a technology that allows us to capture and visualize the infrared radiation emitted by objects and living beings. Every object with a temperature above absolute zero (-273.15 degrees Celsius or -459.67 degrees Fahrenheit) emits infrared radiation in the form of heat. Thermal imaging devices detect this radiation and create images or videos that represent the temperature variations across a scene.

Here are some key points about thermal imaging:

1. Principle of Operation:Thermal imaging works on the principle that different objects emit different levels of infrared radiation based on their temperature. Infrared cameras or thermal imagers use sensors that can detect and convert this radiation into a visible image.

2. Applications:Thermal imaging has a wide range of applications, including:

   • Security and Surveillance:Thermal cameras can be used for surveillance and security to detect intruders in the dark or in low-visibility conditions.
   • Search and Rescue:In disaster situations, thermal imaging can help locate survivors by detecting their body heat.
   • Firefighting:Firefighters use thermal cameras to see through smoke and locate people or hotspots in burning buildings.
   • Medical Diagnosis:Infrared cameras are used for medical purposes, such as identifying areas of inflammation or elevated body temperature.
   • Building Inspections:In construction and maintenance, thermal imaging can identify heat leaks, moisture, and electrical problems in buildings.
   • Industrial Inspections:It’s used to inspect machinery, electrical systems, and detect overheating components.

3. Color Mapping:In thermal images, colors are often used to represent different temperatures. Typically, warm areas are displayed in warm colors (red, yellow, orange), while cooler areas are displayed in cool colors (blue, green, purple). This color mapping helps users quickly identify temperature differences in the scene.

4. Resolution:Thermal imaging cameras come in various resolutions, with higher resolution cameras providing more detail and accuracy in temperature measurements.

5. Limitations:Thermal imaging is limited by the fact that it can’t see through opaque materials like walls or glass, and it may struggle to distinguish objects with very similar temperatures. Additionally, it’s affected by factors like ambient temperature, humidity, and distance.

6. Types of Cameras:There are different types of thermal imaging cameras, including handheld devices, fixed installations, and even smartphone attachments that use thermal imaging technology.

7. Military and Defense:Thermal imaging has been widely used in military and defense applications for target detection, navigation, and surveillance.

8. Consumer Applications:In recent years, thermal imaging has become more accessible to consumers through smartphone attachments and dedicated consumer devices. This has led to applications in areas like home improvement and outdoor activities, such as hunting and wildlife observation.

In summary, thermal imaging is a technology that allows us to see and measure temperature differences in various applications, from industrial and medical uses to military and consumer applications. It has proven to be a valuable tool for detecting heat-related issues and providing enhanced vision in low-light or adverse conditions.
